DGW300MS/UKV

Diesel Welder Part No. 123456

The DGW300MS/UKV is a diesel-powered welder generator designed for construction, maintenance, fabrication, and field service applications. Combining reliable welding performance with auxiliary power generation, the unit enables efficient operation in remote locations and on demanding job sites.

Powered by a durable diesel engine, the machine delivers stable welding output for a wide range of welding tasks while providing AC power for tools and site equipment. Its robust construction is designed to withstand harsh working environments and continuous industrial use.

CC CV welding, Start TIG, Spill Containment, Low Noise, Certified Stage V, Powered by Kubota, RealDual and Eco certifications
JAPAN TECHNOLOGYSTAGE VREALDUAL
KEY SPECIFICATIONS
  • Welding Current: 300 A
  • Power Output: 8 kVA
  • Duty Cycle: 80%
PERFORMANCE & BENEFITS
  • Stable output for professional field work
  • Reliable industrial configuration
  • Auxiliary power for site equipment
  • Prepared for demanding environments
TYPICAL APPLICATIONS
  • Construction and infrastructure projects
  • Pipeline and maintenance work
  • Industrial fabrication
  • Remote and off-grid locations
KEY FEATURES
  • Project-ready industrial design
  • Reliable continuous operation
  • Serviceable field configuration
  • Placeholder specification where final data is pending
WHY CHOOSE THIS MODEL
  • Professional Feroxo equipment range
  • European service support
  • Robust operation and configuration flexibility

Technical Specifications

Model
Diesel Welder DGW300MS/UKV
Engine
Kubota D722, 3-cylinder, water-cooled diesel
Welding Current Range
30–300 A
Rated Welding Current
260 A
Duty Cycle
80%
Open Circuit Voltage
Max. 95 V
Electrode Diameter
2.0–6.0 mm
Auxiliary Power Output
240 V AC, 50 Hz, 8 kVA
Fuel Tank Capacity
38 L
Engine Displacement
0.719 L
Dimensions (L × W × H)
1395 × 566 × 760 mm
Dry Weight
365 kg
Rated Engine Output
11.7 kW @ 3000 rpm
Starting System
Electric starter

Equipment

Welding Cable Set

  • Cable cross-section: 16 mm²
  • Configuration: electrode holder and ground clamp
  • Connection system: LUG-Twist Mate adapters
  • Standard cable length: 20 m

Remote Control Unit

  • Model: RCB-400/EM
  • Cable length: 20 m
  • Function: remote operation of the welding generator

Customization

Cable length and configuration are available on request for project-based requirements.

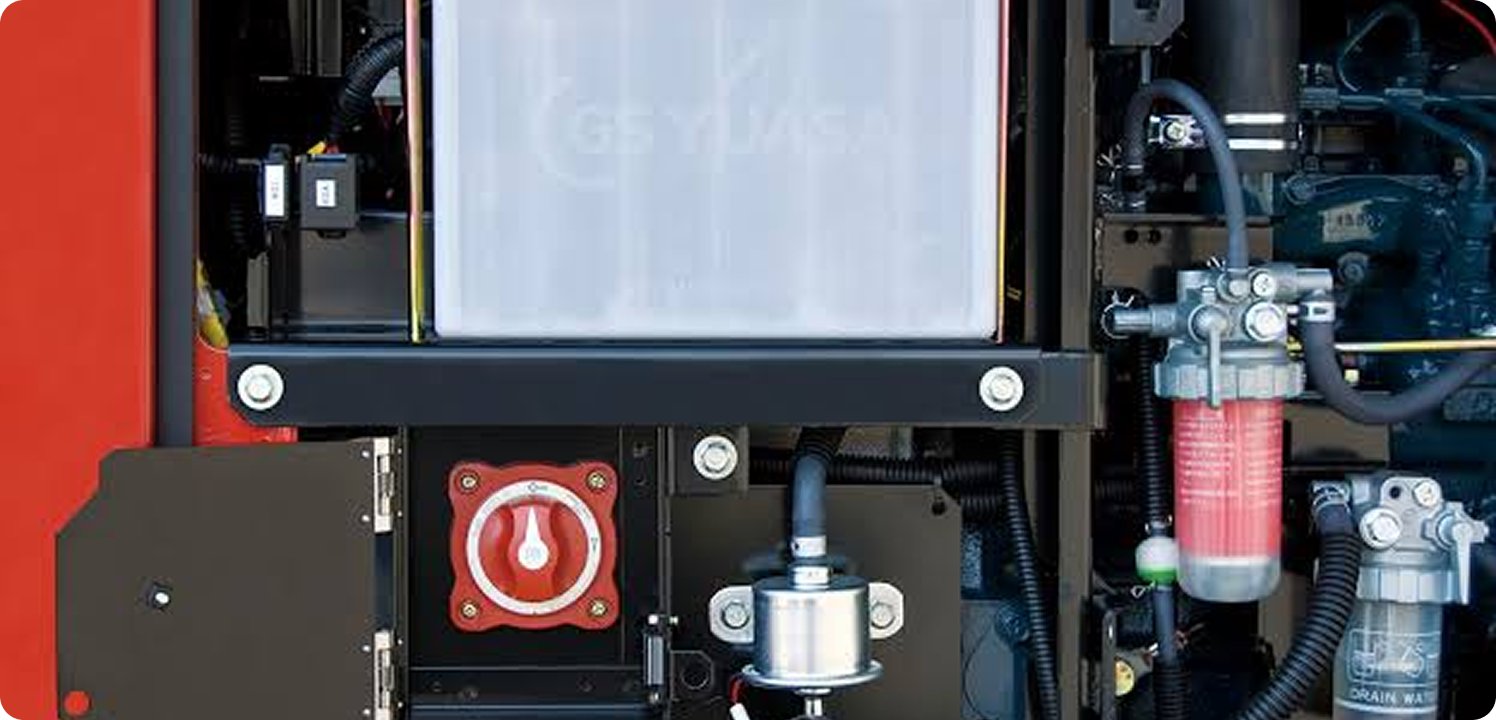

Video
